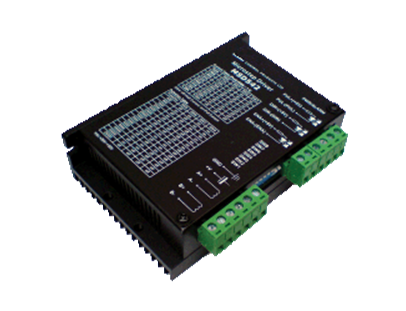

M & ND SERIES
-High Current/High Resolution
-Analogue
M & ND Range Features:
- Resolution set by DIP switches up to 51,200 st/rev*
- Current programmable 0.3 to 8.2A*
- Advanced bipolar chopper drive
- Economic pricing
- (* Dependent on drive selected)
M & ND Range Benefits:
- Simple and user-friendly
- High torque & speed
- Very high reliability
- Highly efficient
The M & ND Series stepper drives present a range of state-of-the-art, micro stepping drives combining top-of-the-range performance with economic manufacturing methods.
Utilizing an advanced bipolar, constant current chopping technique, the M & ND Series allow greater speed and power to be obtained from the same motor compared with traditional technologies such as L/R drives.
Patented current control technology allows coil currents to be accurately controlled, resulting in drastically reduced current ripple and motor heating.
These drives allow all 3X stepper motors from our smallest 20mm motor to our largest 86mm to be fully exploited in your application.
Drive manuals are available separately on request.
| Part No. | Output Current | Supply Voltage | Micro step Resolution |
Suitable Motor Type | Weight | Size | Control Signals | |
| A | V | Kg | mm*mm*mm | |||||
| M542 | 1.0-4.2 | DC(20-50) | 2-128, 5-125 | 28-35-39-42-57-60 | 0.28 | 118*75.5*34 | pul/dir, cw/ccw | single ended, differential |
| M752 | 1.8-5.2 | DC(20-50) | 2-256, 5-200 | 28-35-39-42-57-60 | 0.28 | 119*75.5*34 | pul/dir, cw/ccw | single ended, differential |
| ND556 | 0.5-5.6 | DC(18-50) | 2-128, 5-125 | 28-35-39-42-57-60-86 | 0.28 | 120*75.5*34 | pul/dir, cw/ccw | single ended, differential |
| M880A | 2.8-7.8 | DC(24-80) | 2-256, 5-200 | 39-42-60-86 | 0.57 | 151*97*48 | pul/dir, cw/ccw | single ended, differential |
| ND1182 | 0.7-8.2 | AC(70-150) | 2-128, 5-125 | 60-86 | 1.30 | 200*137*81 | pul/dir, cw/ccw | single ended, differential |
| ND2282 | 0.45-8.2 | AC(80-220) | 2-50 | 60-86 | 2.00 | 202*167*63 | pul/dir, cw/ccw | single ended, differential |

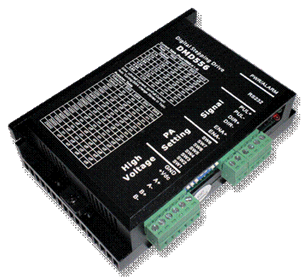

DM SERIES
-Very Low Noise/Very High Resolution
-Digital Stepper Drives
DM Range Features:
- Software configurable using tuning interface
- Programmable resolution to 102,400 st/rev
- Powerful 32 bit DSP Controller
- Anti-resonance circuitry
DM Range Benefits:
- Mid-range instability eliminated
- 70% audible noise reduction
- Low speed ripple smoothing
- Low motor heating
The high performance DM Series drives result from the use of new, patented 32-bit DSP control technology. This results in such advanced features as super-low stepping motor noise, anti-resonance, low-speed ripple smoothing and low motor heating.
Each DM Series drive calculates it’s own natural system frequency and applies a damping control algorithm for superior anti-resonance and drastically reduced motor noise.
Motor noise can be dramatically reduced by up to 70% of it’s original value.
| Part No. | Output Current | Supply Voltage | Micro step Resolution |
Suitable Motor Type | Weight | Size | Control Signals | |
| A | V | Kg | mm*mm*mm | |||||
| DM320C | 0.3-2.0 | DC(20-30) | 1-512 | 20-28-35-39-42-57-60 | 0.10 | 86*55*20 | pul/dir, cw/ccw | single ended, differential |
| DM422 | 0.3-2.2 | DC(18-40) | 1-512 | 20-28-35-39-42-57-60 | 0.12 | 86*55*20 | pul/dir, cw/ccw | single ended, differential |
| DM556 | 0.5-5.6 | DC(18-50) | 1-512 | 28-35-39-42-57-60-86 | 0.28 | 118*75.5*33 | pul/dir, cw/ccw | single ended, differential |
| DM856 | 0.5-5.6 | DC(18-50) | 1-512 | 39-42-60-86 | 0.28 | 118*75.5*33 | pul/dir, cw/ccw | single ended, differential |
