Brushless AC Servo Motors

Contact us for a Quote »

Brushless_AC_servo_motor

  1. Frame size: 60, 80, 90, 110, 130, 180, 230
  2. Motor code
  3. Drive input voltage: A-220VAC, B-380VAC
  4. Rated torque: x0.1 (040X0.1=4Nm)
  5. Rated speed: x100 (20×100=2000rpm)
  6. Feedback elements: E-2500ppr incremental encoder, R-resolver, H-hall
  7. Key on shaft
  8. Brake
  • Low/middle/high inertia, brake for option.
  • Power range: 0.1kw-30kw
  • Rated torque range: 0.1Nm-95Nm
  • Feedback: Encoder/Resolver/Hall
  • Connector: MS connector/Lead wire

Models Overview:

180 series servo motor(380Vac)
180 series servo motor(380Vac)
180 series servo motor(220Vac)
180 series servo motor(220Vac)
230 series servo motor(380Vac)
230 series servo motor(380Vac)
130 series servo motor
130 series servo motor

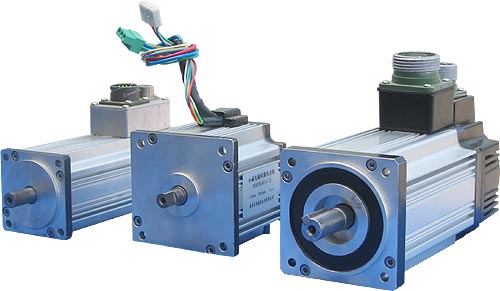

60/80 series servo motor
60/80 series servo motor
90/110 series servo motor
90/110 series servo motor
