General Specifications
Gearbox Housing | Ruggedised Die-cast Aluminium |
Worm Gear Material | Bronze, steel or plastic |
Lubrication | Grease lubricated & sealed for life |
Bearing Type | High quality ball bearings |
Insulation Class | Class F (Optional: Class B) |
Brush Type | Integral or removable |
Ambient Operating Temperature | -20℃ to +40℃ |
Performance Data
Motor Type: | 73ZYT Series | ||
---|---|---|---|

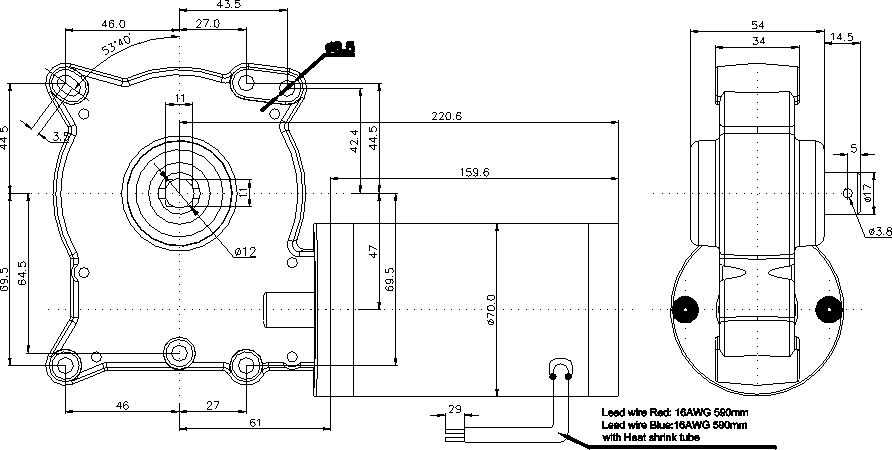

Motor Length: | 159.6 | 159.6 | mm |
Rated Voltage: | 24 | 240 | VDC |
Rated Speed | 550 | 550 | ±10% rpm |
Rated Power | 560 | 600 | W |
Geear Ratio | 10:1 | 10:1 | |
Motor Torque | 1.2 | 1.2 | Nm |
Motor Speed | 5500 | 5500 | ±10% rpm |
Duty Cycle |
2 to 3 seconds on, 2 to 5 minutes off. |
